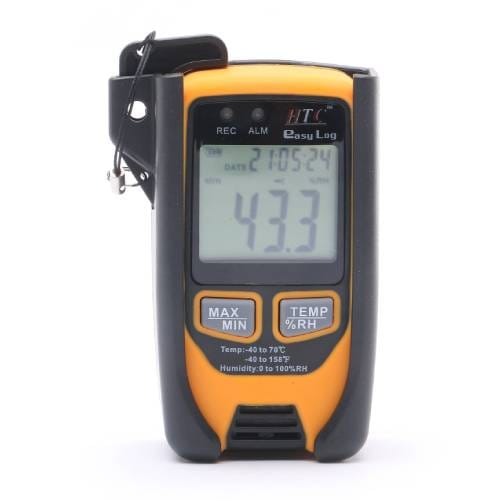

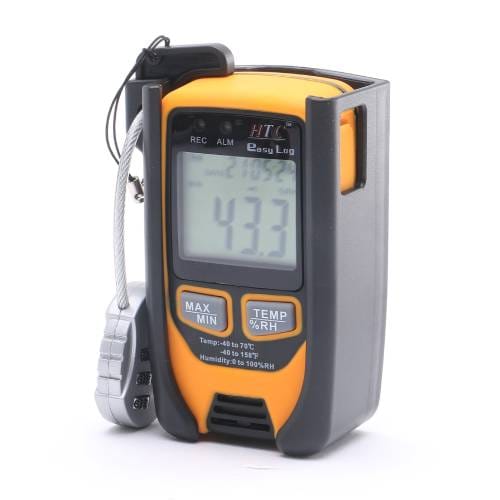

The HTC Easy Log Temperature & Humidity Data Logger is a compact and reliable instrument designed for continuous monitoring and recording of temperature and relative humidity. It is suitable for applications where environme...
Read More| Country of origin | India |
|---|---|
| Net Quantity | 1 unit |
| Manufacturer or packer name | Uniglobal Business |
The HTC Easy Log Temperature & Humidity Data Logger is a compact and reliable instrument designed for continuous monitoring and recording of temperature and relative humidity. It is suitable for applications where environmental conditions need to be monitored and recorded over an extended period.
With memory for up to 32,700 readings, a selectable measurement interval from 1 second to 24 hours, LCD display, alarm indication, USB connectivity and analysis software, the HTC Easy Log provides a convenient solution for temperature and humidity data logging.
The data logger measures temperature from -40°C to 70°C and relative humidity from 0%RH to 100%RH. Recorded data can be transferred to a computer through the USB interface and analyzed using the supplied software.
Large Data Memory: The HTC Easy Log can store up to 32,700 readings, making it suitable for extended temperature and humidity monitoring.
Temperature & Humidity Measurement: The data logger measures temperature from -40°C to 70°C and relative humidity from 0%RH to 100%RH.
Selectable Measurement Interval: Users can select a measurement cycle from 1 second to 24 hours according to their monitoring requirements.
LCD Display: The built-in LCD displays temperature, humidity and other logging information for convenient monitoring.
Alarm Function: The device provides an alarm indication when user-defined maximum or minimum temperature and humidity limits are exceeded.
LED Status Indicators: Two LED indicators display recording and alarm status, making it easier to monitor the device during operation.
USB Computer Interface: Recorded data can be transferred to a computer through the USB interface for further analysis and record keeping.
Data Analysis Software: The supplied software allows recorded information to be reviewed in graphical or text format.
Long Battery Life: The product is designed for extended operation using a 3.6V lithium battery. Published specifications indicate long battery life under ideal conditions.
Portable Design: The compact data logger can be conveniently carried and used at different monitoring locations.
| Specification | Details |
|---|---|
| Product Name | HTC Easy Log Temperature & Humidity Data Logger |
| Product Type | Temperature & Humidity Data Logger |
| Temperature Measuring Range | -40°C to 70°C / -40°F to 158°F |
| Humidity Measuring Range | 0%RH to 100%RH |
| Temperature Accuracy | ±1.0°C from -40°C to 40°C; ±2.0°C from 40°C to 70°C |
| Humidity Accuracy | ±3.0%RH from 35% to 80%RH; <±5%RH from 0–35%RH and 80–100%RH |
| Temperature Resolution | 0.1°C |
| Humidity Resolution | 0.1%RH |
| Memory | Up to 32,700 readings |
| Detailed Memory Specification | 32,000 readings; 16,000 each for temperature and humidity |
| Measuring Rate | 1 second to 24 hours |
| Response Time | Less than 30 seconds |
| Display | LCD |
| Alarm | User-defined maximum/minimum alarm |
| Status Indicators | 2 LEDs |
| Computer Interface | USB |
| Software | Data analysis software |
| Power Supply | 3.6V Lithium Battery |
| Dimensions | Approximately 94.8 × 51.4 × 29.5 mm |

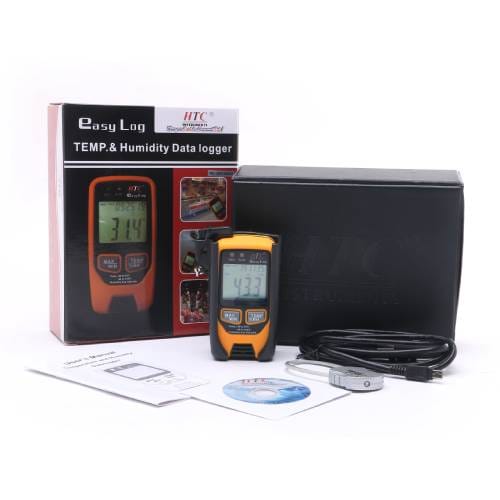

| Accessories | Battery, hard carrying case, safety lock, USB cable and software |
Warehouses: Monitor and record temperature and humidity conditions in warehouses, storage facilities and other enclosed areas.
Logistics & Transportation: Record environmental conditions during storage and transportation where temperature and humidity monitoring is required.
Laboratories: Monitor environmental temperature and humidity conditions in laboratory and testing environments.
Telecommunication Rooms: Monitor environmental conditions in telecommunication and equipment rooms.
Intelligent Buildings: Suitable for recording indoor temperature and humidity conditions in building management applications.
Libraries & Museums: Useful for monitoring environmental conditions in libraries, museums and other enclosed spaces.
Commercial Spaces: Can be used in stores, offices, departments and other commercial environments requiring environmental data logging.
Indoor Environmental Monitoring: Suitable for continuously recording temperature and relative humidity in a wide range of indoor applications.
The HTC Easy Log continuously measures temperature and relative humidity according to the selected measurement interval. The recording interval can be configured from 1 second to 24 hours, allowing the device to be adapted for short-term checks or longer-term environmental monitoring.
The recorded measurements are stored in the device's internal memory. When monitoring is complete, the data can be transferred to a computer using the USB interface and reviewed through the analysis software in graphical or text format.
The device also supports user-defined maximum and minimum alarm limits. When the measured conditions exceed the configured limits, the alarm indicator provides a visual indication.
Continuous Monitoring: Records temperature and humidity continuously according to the selected measurement interval.
Large Storage Capacity: Stores thousands of temperature and humidity readings for long-term monitoring.
Flexible Logging: Measurement intervals can be selected from 1 second to 24 hours.
Easy Data Transfer: USB connectivity allows recorded information to be transferred to a computer.
Data Analysis: Software allows recorded data to be viewed in graphical or text format.
Alarm Monitoring: User-defined temperature and humidity limits help identify readings outside the selected range.
Portable Construction: The compact design makes the device convenient to use at different monitoring locations.
What is the HTC Easy Log Temperature & Humidity Data Logger used for?
The HTC Easy Log is used to measure, record and monitor temperature and relative humidity over a selected period.
What temperature range does the HTC Easy Log measure?
The data logger measures temperature from -40°C to 70°C, equivalent to -40°F to 158°F.
What is the humidity measurement range?
The HTC Easy Log measures relative humidity from 0%RH to 100%RH.
How many readings can the HTC Easy Log store?
The product is advertised with memory for up to 32,700 readings. The detailed technical specification lists 32,000 readings, with 16,000 readings allocated to temperature and 16,000 to humidity.
What measurement intervals are available?
The measurement cycle can be selected from 1 second to 24 hours.
Does the HTC Easy Log have an LCD display?
Yes, the device has an LCD display that shows temperature, humidity and other logging information.
Does the HTC Easy Log have an alarm function?
Yes, the device can provide an alarm indication when user-defined maximum or minimum temperature or humidity limits are exceeded.
Can data be transferred to a computer?
Yes, recorded data can be transferred to a computer through the USB computer interface.
Does the HTC Easy Log come with analysis software?
Yes, the product includes software that can be used to view and analyze recorded data in graphical or text format.
What type of battery does the HTC Easy Log use?
The data logger uses a 3.6V lithium battery.
What accessories are included with the HTC Easy Log?
Standard accessories include a battery, hard carrying case, safety lock, USB cable and software.
Where can the HTC Easy Log be used?
It can be used in warehouses, logistics and transportation, laboratories, telecommunication rooms, intelligent buildings, libraries, museums, commercial spaces and other indoor environments.
What is the response time of the HTC Easy Log?
The listed technical specification gives a response time of less than 30 seconds.
What is the resolution of the HTC Easy Log?
The temperature resolution is 0.1°C and the relative humidity resolution is 0.1%RH.
The HTC Easy Log combines temperature and humidity measurement, data storage, adjustable logging intervals, alarm monitoring and computer-based data analysis in a compact instrument. Its wide measurement range and flexible recording interval make it suitable for a variety of environmental monitoring requirements.
The HTC Easy Log Temperature & Humidity Data Logger is a practical solution for recording environmental temperature and relative humidity over time. With a large memory capacity, flexible measurement intervals, LCD display, alarm function, USB connectivity and analysis software, it is suitable for professional environmental monitoring applications.
Contact UniGlobalBusiness.com for product availability, pricing, bulk requirements and further product information.
