A SOC (State of Charge) meter is a digital monitoring device that measures and displays the remaining capacity of a battery as a percentage.

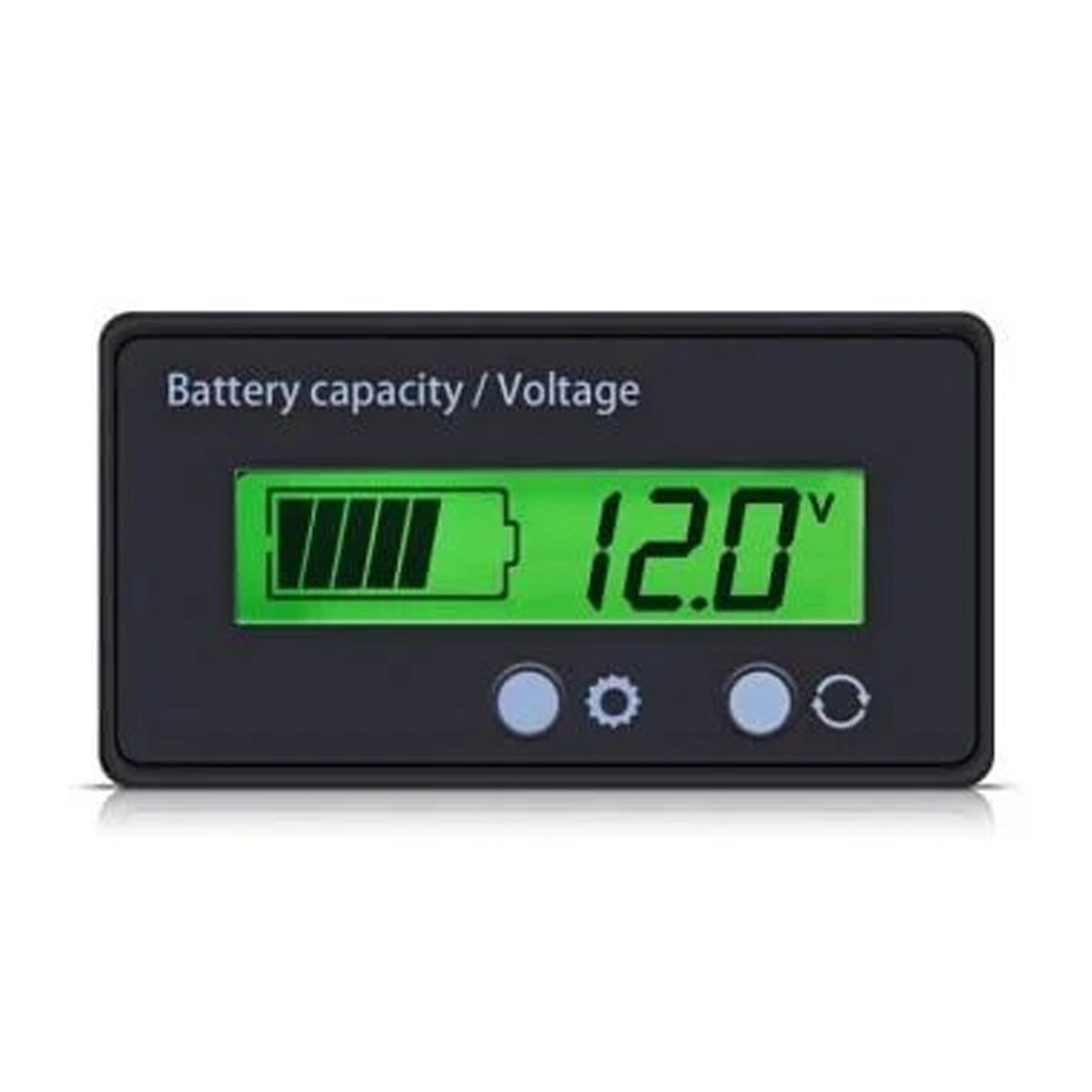

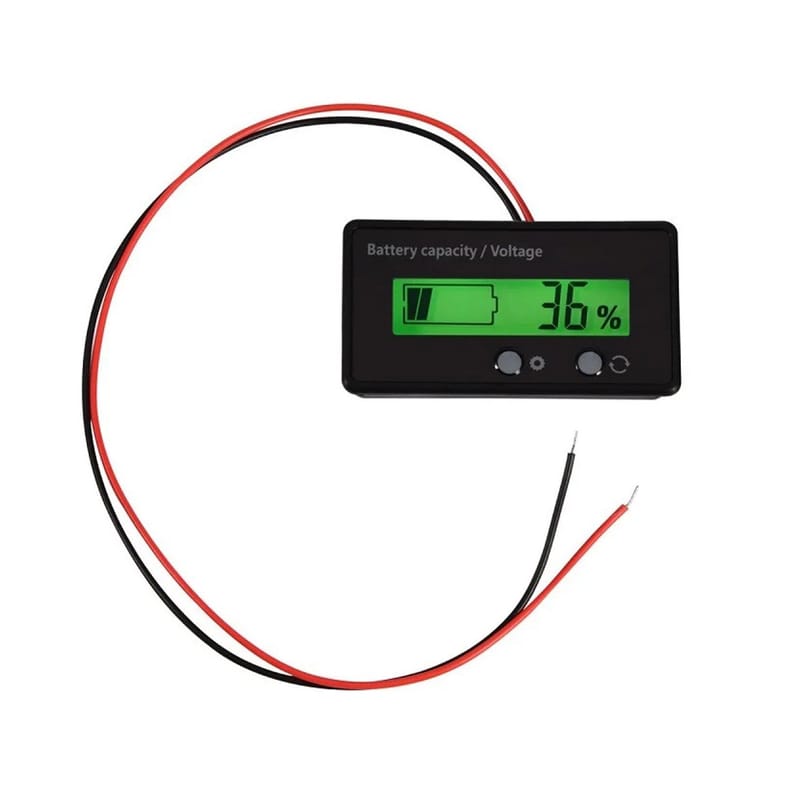

The Battery Capacity Voltage Meter does more than measure voltage—it also provides precise battery capacity readings, displaying them as a percentage. With a high-quality LCD screen featuring green backlighting, it ensures a bright and clear display from any viewing angle. Its waterproof PVC film surface enhances durability in various environments, while the responsive, sturdy buttons and buckle design allow for easy, screw-free installation. Perfect for a wide range of applications, this versatile meter is ideal for portable devices, electric vehicles, self-balancing scooters, cleaning machines, and measurement tools.

Material : PCB/HTN
Light Color : Green
Display Range : 8-100V
Applicable Battery Voltage : 12-84V
Compatible Battery : acid battery, lithium battery, iron lithium battery (can be set by yourself.)
Display Mode : LCD

Setting Instruction:

• Long press the Set key, power supply to the product, enter the setup interface


• Press the Set key to select the battery specification (Lead-acid battery(P), Lithium battery (L), Fe battery(F))


• Short press the Function key to select the number of battery strings (increasing for the set button, decreasing for function button)


• Long press the Function key to set s mode.

Features :

• Equipped with a switch, you can turn off the power, no power consumption after turning off.


• Accurately display the battery power percentage, voltage, and intuitively grasp the battery usage status.


• When the power value is lower than or equal to 20%, the backlight flashes an alarm.


• Compatible with acid battery, lithium battery, iron lithium battery which can be set by yourself.


• Double button design, easy to set up, can be set in just a few seconds.


• Manually switch battery percentage/voltage/power off


• Automatic recycling display battery capacity/voltage per 2 seconds (Settable)


• 10s delay auto-off (Settable)


• Double discharge curve selection (Settable)

Specification

• Material: PCB/HTN


• Light Color: Green


• Display Range: 8-100V


• Applicable Battery Voltage: 12-84V


• Compatible Battery: acid battery, lithium battery,


• iron lithium battery (can be set by yourself.)


• Display Mode: LCD
